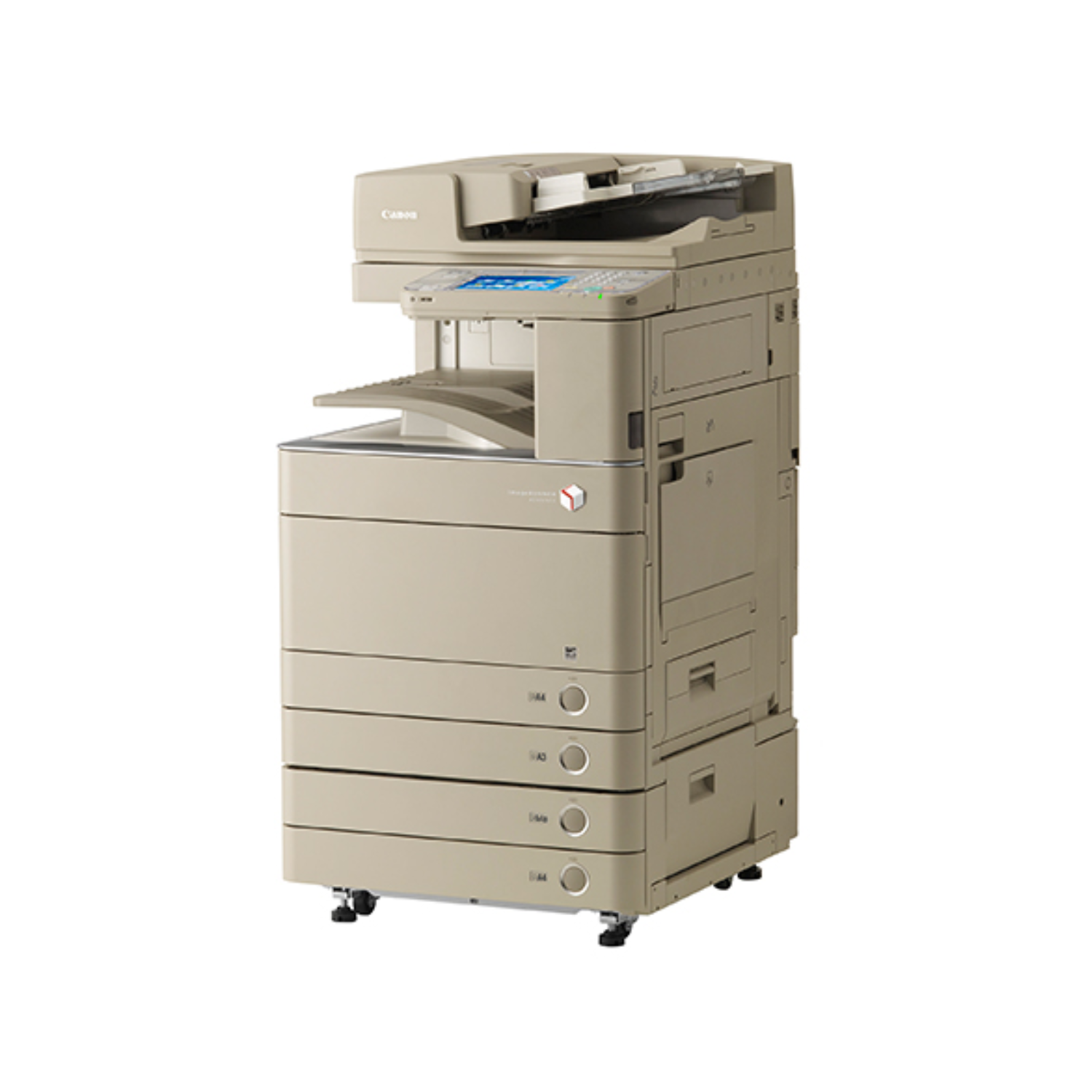

Canon ImageRunner Advance C5235

Availability: In Stock



Call us to know the Machine’s price (+1 416-740-5252)


Type Color Digital Multifunction Imaging System
Letter: Up to 35/30 ppm
Legal: Up to 20/18 ppm
Ledger: Up to 20/18 ppm
Functions Standard: Copy, Print (UFR II), Scan, Send, Store
Optional: Print (PCL, Adobe® PostScript® 3™), Fax (Up to 4 Lines)
Operation Panel 8.4″ SVGA Full-Color TFT Screen
Image Server Memory Standard: 2GB RAM
Maximum: 2.5GB RAM
Hard Disk Drive Standard: 160GB
Maximum: 1TB
Mirroring Hard Disk Drive Optional (160GB, 1TB), Method: RAID1
Network Interface Connection Standard: 1000Base-T/100Base-TX/10Base-T
Optional: Wireless LAN (IEEE 802.1x via third-party adapter)
Other Interface Standard: USB 2.0 (Host) x 2, USB 2.0 (Device)
Optional: Device Port [USB 2.0 (Host) x 2], Serial Interface, Copy Control Interface
Max Mailboxes Supported 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes Approx.
Max Pages Stored 6,000 Maximum Pages Stored
Standard Paper Capacity Dual 550-sheet Paper Cassettes,
100-sheet Stack Bypass
Optional Dual 550 Sheet Paper Cassettes,
2,700-sheet Paper Deck
Maximum Paper Capacity 5,000 Sheets
Output Paper Capacity (20 lb. Bond): Standard: 250 Sheets (Inner Tray)
Maximum: 3,250 Sheets (w/Staple Finisher or Booklet Finisher)
Warm Up Time From Power On: 31 Seconds, From Sleep: 15 Seconds Quick Startup Mode: 7 Seconds***
Power Requirements 120V AC, 60Hz, 15A
Power Consumption Maximum: 1.5kW
Sleep Mode: 0.8W
Plug NEMA 5-15P
Dimension 36-5/8″ x 24-3/8″ x 28″
(931mm x 620mm x 712mm)
Installation Space 33-1/2″ x 28″ (850mm x 712mm)
Weight Approx. 333 lb. (151kg)†
Basic Copy Features First Copy Time: BW: 5.4 Seconds, Color: 8.1 Seconds
Multiple Copies: 1 to 999
Copy Exposure: Automatic or Manual (9 Levels)
Magnification: 25% – 400% (1% Increments)
Preset Reductions: 25%, 50%, 64%, 73%, 78%
Preset Enlargements: 121%, 129%, 200%, 400%
Environmental Features EPEAT® Rated ENERGY STAR® Qualified RoHS Compliant Ecomark Blue Angel WEEE Directive

Advanced Box

Available Disk Space 15GB (Standard HDD)
Approx. 629GB (1TB HDD)
Common Protocol SMB or WebDAV
Supported Client PC Windows® (Windows 2000/XP/Windows Vista®)
Max. Number of Concurrent Connections SMB: 32, WebDAV: 12 (Active Sessions)
Advanced Box Features Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support

Memory Media

Standard USB Memory
Optional SD, SDHC, CompactFlash, Memory Stick, Microdrive

Scan Specifications

Network TWAIN Scan Standard
Network Scan Utility Color Network ScanGear

Output Sizes

Cassette 12″ x 18″,* 11″ x 17″,* Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2″ x 7-1/8″ to 12″ x 18″)
Bypass 12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size (3-7/8″ x 5-1/2″ to 12-5/8″ x 18″)
Paper Deck: Letter
Other Option Envelope Feeder Attachment (COM10 No.10, Monarch, DL, ISO-C5)** Tab Feeding Attachment Kit**

Acceptable Paper Weights

Cassette 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Bypass 14 lb. Bond to 140 lb. Index (52 to 256g/m2)


Paper Size Standard Automatic Trayless Duplexing (Executive to 12″ x 18″)
Paper Weight 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Special Media Support Thin, Plain 1 [17 lb. Bond to 21 lb. Bond (64g/m2 to 81g/m2)], Plain 2 [22 lb. Bond to 28 lb. Bond (82g/m2 to 105g/m2)], Recycled, Color, Pre-Punched, Bond, Heavy 1 [29 lb. Bond to 60 lb. Cover (106g/m2 to 163g/m2)], Heavy 2 [61 lb. Cover to 80 lb. Cover (164g/m2 to 220g/m2)], Heavy 3 [82 lb. Cover to 140 lb. Index (221g/m2 to 256g/m2)], Tracing, Coated, Labels, Transparency, Tab, Letterhead, and Envelopes

Image Reader

Scan Resolution Up to 600 x 600 dpi
Acceptable Originals (Glass): Sheet, Book, 3-Dimensional objects [up to 4.4 lb. (2kg)]
Maximum Original Size Up to 11″ x 17″

Security Features

Standard Department ID Management, Single Sign On-H, Access Management System (Device and Function Level Log-in), Secured Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPV6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Port Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPSec, Adobe LiveCycle Rights Management ES2.5 Integration
Optional Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria CertificationΔΔ
Estimated Toner Yield (Estimated Yield @ 5% Coverage): Black: 36,000 Copies/Bottle, Color (C,M,Y): 27,000 Copies/Bottle


Acceptable Originals 11″ x 17″, Legal, Letter, Letter-R, Statement, or Statement-R
Scan Method Duplex Automatic Document Feeder
Scanning Speed (BW/Color; Letter): Simplex: Up to 51/51 ipm (300 dpi)/ Up to 46/46 ipm (600 dpi)
Duplex: Up to 19.6/19.6 ipm (300 dpi)/ Up to 17.5/17.5 ipm (600 dpi)
Capacity (20 lb. Bond): 100 Sheets
Paper Weight 1-sided scanning: 11 lb. Bond to 58 lb. Cover (42 to 157g/m2)
2-sided scanning: 13 lb. Bond to 58 lb. Cover (50 to 157g/m2)

Paper Supply Options

Description Cassette Feeding Unit-AD2
Paper Capacity 550 Sheets x 2 Cassettes [20 lb. Bond (80g/m2)]
Paper Size 12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Statement-R, Executive, and Custom Size [5-1/2″ x 7-1/8″ to 12″ x 18″ (139.7mm x 182mm to 304.8mm x 457.2mm)]
Paper Weight 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Power Source From the Main Unit
Power Consumption Approximately 30W
Dimensions 9-7/8″ x 24-3/8″ x 27-5/8″ (251mm x 620mm x 700mm)
Weight Approximately 61.7 lb. (28kg)
Description Paper Deck Unit-B2
Number Of Cassettes 1
Paper Capacity 2,700 sheets [20 lb. Bond (80g/m2)]
Paper Size Letter
Paper Weight 14 lb. Bond to 60 lb. Cover (52 to 163g/m2)
Power Source From Main Unit
Power Consumption Approximately 45W
Dimensions 18-5/8″ x 14-5/8″ x 23-3/4″
(473mm x 372mm x 603mm)
Weight Approximately 81.6 lb. (37kg)
Description Envelope Feeder Attachment-D1**
Paper Capacity 50 Sheets (or 30mm in height)
Paper Size COM10 No.10, Monarch, DL, ISO-C5Feeding Speed: 10 cpm
Dimensions 3-1/4″ x 17-1/4″ x 12-1/8″
(81mm x 439mm x 307mm)
Weight Approximately 2.6 lb. (1.2kg)
